Honda Accord 1991 Fuse Box/Block Circuit Breaker Diagram
| Number | Amps | Wire Color | Component or Circuit Protected |
|---|---|---|---|
| 15 | 80A | - | Power Distribution |
| 16 | - | - | Not Used |
| 17 | 40A | BLK/GRN | Rear Window Defogger Relay (Contacts)(Coupe and Sedan) |
| 30A | BLK/GRN | Rear Window Defogger Relay (Contacts)(Wagon) | |
| 18 | 30A | WHT | Blower Motor Relay |
| 19 | 50A | WHT | Ignition Switch (BAT) |
| 20 | 10A | WHT/GRN | Turn Signal/Hazard Relay, Hazard Switch |
| 21 | - | - | Not Used |
| 22 | 15A | WHT/BLU | Interior Lights |
| 23 | 15A | RED/GRN | Small Lights |
| 24 | 7.5A | WHT/YEL | PGM-FI ECU, A/T Unit, Stereo Radio/Cassette Player, Clock |
| 25 | 20A | WHT/YEL | Horn System, Brake System, Key Switch |
| 26 | - | - | Not Used |
| 27 | 20A | WHT | Power Door Lock Control Unit, Key Switch |
| 28 | 10A | YEL/BLU | PGM-FI ECU Main Relay |
| 29 | 15A | WHT | Condenser Fan Motor, Cooling Fan System |
| 30 | 20A | WHT/YEL | L. Front Power Window Switch |
| 31 | 30A | GRN | Moonroof of Relay |
| 32 | 20A | GRN/BLK | L. Rear Power Window Switch (Sedan and Wagon) |
| 33 | 20A | BLU/BLK | R. Front Power Window Switch |
| 34 | 20A | YEL/BLK | R. Rear Power Window Switch (Sedan and Wagon) |
| 35 | - | - | Not Used |
| 36 | 10A | RED/YEL | Daytime Running Light Relay (Canada) |
| 37 | 20A | RED/YEL | L. Headlight, Daytime Running Light Relay (Canada) |
| 38 | 20A | RED/GRN | R. Headlight, Daytime Running Light Relay (Canada) |
| 39 | 20A | BLU/BLK | Cooling Fan Relay (Contacts) |

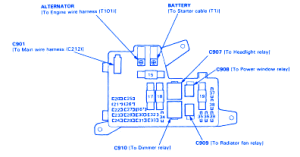

Honda Accord 1991 Fuse Panel/Board – Fuse Symbol Map
