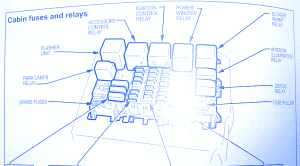

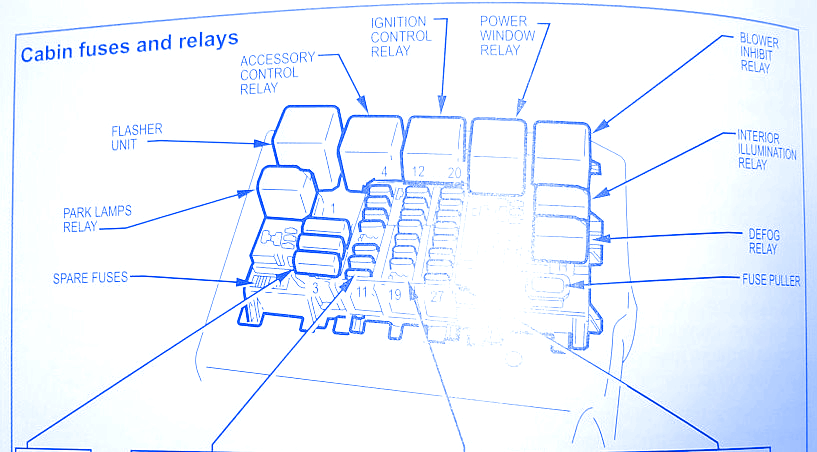

Holden Commodore 2002 Fuse Box/Block Circuit Breaker Diagram
| Fuse Symbol | Amps | Fuse Map |
|---|---|---|
| 1 | 20A | Power Windows |
| 2 | 20A | Power Seats |
| 3 | 20A | Sunroof |
| 4 | 10A | Park Lamps |
| 5 | 15A | Stop Lamps |
| 6 | 10A | Interior Illumination |
| 7 | 15A | Hazard Lamps/Antenna Drive Via BCM |
| 8 | - | Spare |
| 9 | 15A | Horn |
| 10 | 7.5A | Ignition Switch |
| 11 | 7.5A | Instrument Illumination |
| 12 | 15A | Turn Signal & Back-Up Lamps |
| 13 | 7.5A | ECC. TRIP Computer Instrument & Telematics |
| 14 | 20A | Cigar Lighter |
| 15 | 10A | Cruise, Power Mirrors & Level Ride |
| 16 | 7.5A | Radio, MFD, Navigation & Cell Phone |
| 17 | 20A | Accessory Socket |
| 18 | 20A | Front Wiper Washer |
| 19 | - | Spare |
| 20 | 15A | Power Locks, Power Windows & Theft Horn |
| 21 | 10A | Instruments & Climate Control |
| 22 | 20A | Heated Rear Window |
| 23 | 15A | Radio, Cell phone & Navigation |
| 24 | 20A | Sub-Woofer |
| 30A | Amplifier | |
| 25 | 10A | Entertainment System |
| 26 | 15A | SRS |
| 27 | 10A | Anti Lock Brake |
Holden Commodore 2002 Fuse Panel/Board – Fuse Symbol Map
