Haval H2 Engine Compartment Fuse Box / Block Circuit Breaker Diagram
Number A Component 132 20 Transmission Control Module 201 30 Cooling fan low speed 202 40 Cooling fan high speed 203 40 ABS 204 40 ESP 205 40 High Beam relay, Low Beam relay 206 40 Starter relay 207 10 Engine Control Module 208 20 Headlamp Washer 209 20 A/C compressor 210 10 4WD 211 10 Horn 212 15 Fuel pump 213 25 ABS 214 10 Stop Lamp 215 20 Electric vacuum pump 216 20 Main relay 217 15 Ignition 218 10 Low beam headlamps (right) 219 10 Low beam headlamps (left) 2210 15 High Beam 221 10 Heated Oxygen Sensor 232 20 Transmission Control Module S — Spare
Symbol Relay Map R1 Electric vacuum pump R2 Low Beam R3 High Beam R4 Horn R5 Main relay R6 Driver circuit relay R7 Fuel pump R8 A/C compressor R9 Cooling fan high speed R10 Solenoid shift valve R11 Headlamp Washer R12 Starter R13 — R14 — R15 Cooling fan low speed

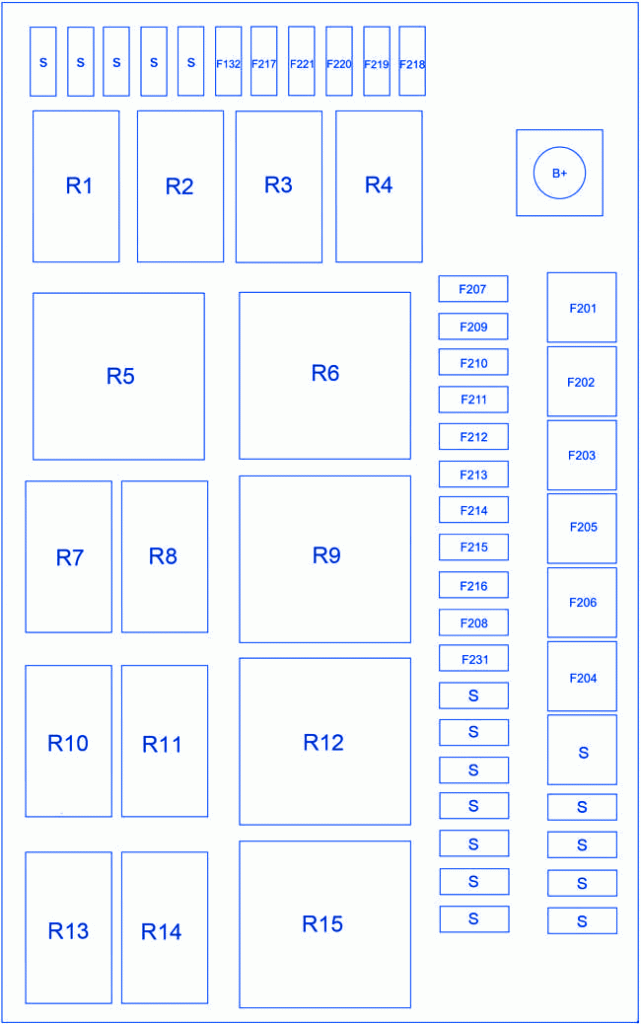

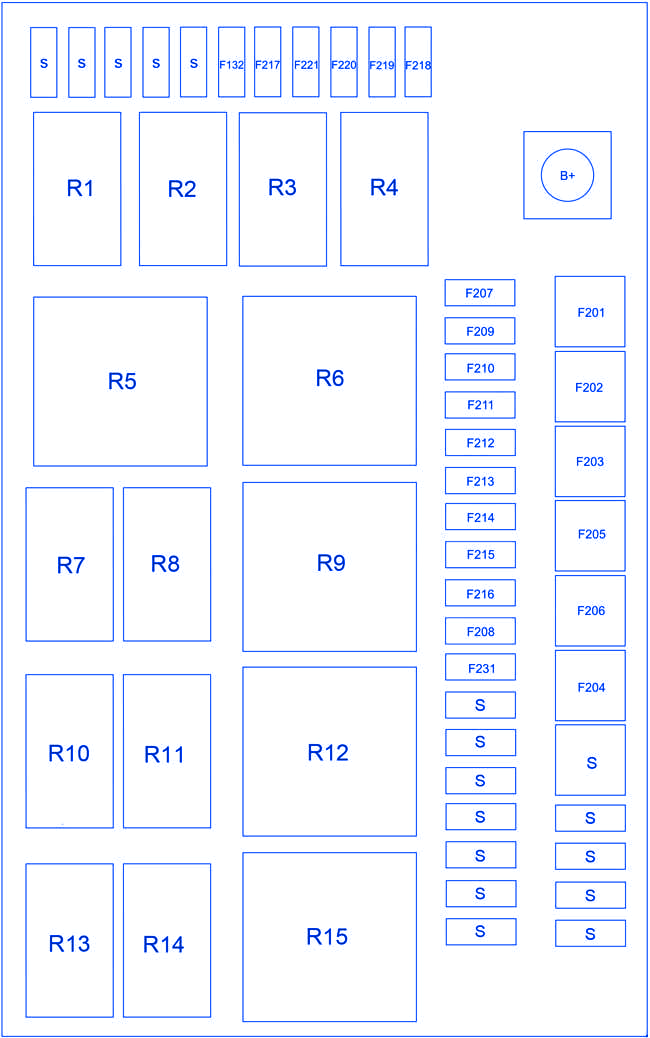

Haval H2 Engine Compartment Fuse Panel / Board – Fuse Symbol Map
