GM Vortec 8100 EXTN 2002 Fuse Box/Block Circuit Breaker Diagram

Categories:

Fuse No.	Name	Size	Load Circuit	Load
1	OPEN	-	-	-
2	HORN	20A	640	Horn Relay
3	CTSY	20A	40	Dome & Courtesy Lamps (Body Builder)
4	GAUGES	20A	39	DRL Relay, DRL Control Module, Cluster, Audio Alarm
5	OPEN	-	-	-
6	OPEN	-	-	-
7	AUX PWR	20A	1040	Body Builder
8	OPEN	-	-	-
9	PK LPS	20A	240	Headlamp Switch (Park Marker and Tail Lamps)
10	TURN	15A	139	Turn Signal Switch
11	AUTO PARK B/U	15A	139	Park/NEV Posn & B/U Lamp Switch
12	JACKS ALARM	5A	141	Jacks Alarm
13	CIG LTR	20A	1140	Cig Lighter (Body Builder)
14	ILLUM	10A	8	I/P Cluster, Audio Alarm, Body Builder Feed
15	OPEN	-	-	-
16	RADIO ACC	15A	43	Body Builder Radio
17	MKR LPS	10A	814	License Lamps Body Builder Marker LPS
18	OPEN	-	-	-
19	RADIO BAT	10A	1240	Body Builder Radio
20	OPEN	-	-	-
21	OPEN	-	-	-

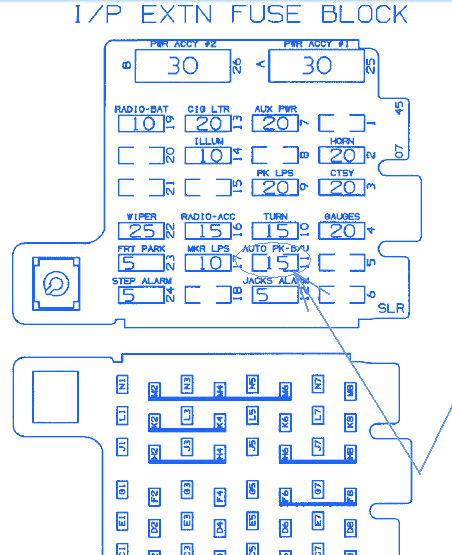

GM Vortec 8100 EXTN 2002 Fuse Panel/Board – Fuse Symbol Map
