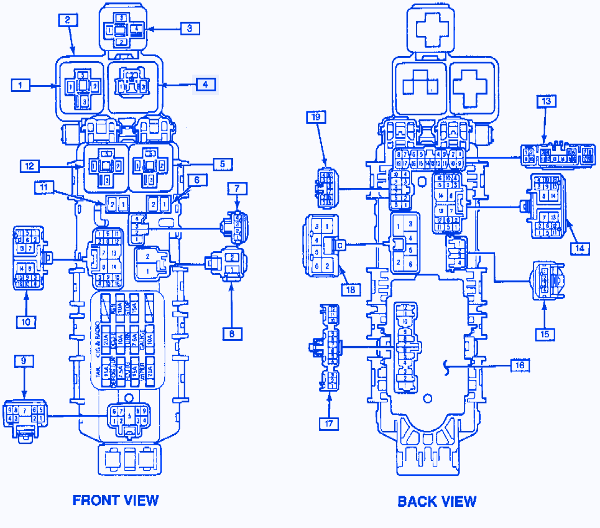

GM Geo Prism 1996 Junction Fuse Box/Block Circuit Breaker Diagram
| SYMBOL | DESCRIPTION |
|---|---|
| 1 | STARTER RELAY |
| 2 | RELAY BLOCK CASSETTE |
| 3 | ACCESSORY POWER RELAY |
| 4 | TURN/HAZARD FLASHER |
| 5 | TAILLAMP RELAY |
| 6 | DEFOGGER FUSIBLE LINK |
| 7 | JUNCTION BLOCK 1 CONNECTOR C1 (FROM ROOF HARNESS) |
| 8 | JUNCTION BLOCK 1 CONNECTOR C3 (FROM ENGINE COMPARTMENT HARNESS) |
| 9 | JUNCTION BLOCK 1 CONNECTOR C4 (FROM FLOOR HARNESS) |
| 10 | JUNCTION BLOCK 1 CONNECTOR C2 (FROM ENGINE COMPARTMENT HARNESS) |
| 11 | ACCESSORY FUSIBLE LINK |
| 12 | DEFOGGER RELAY |
| 13 | JUNCTION BLOCK 1 CONNECTOR C5 (FROM I/P HARNESS 1) |
| 14 | JUNCTION BLOCK 1 CONNECTOR C7 (FROM I/P HARNESS 1) |
| 15 | JUNCTION BLOCK 1 CONNECTOR C9 (FROM I/P HARNESS 1) |
| 16 | AUDIO ALARM MODULE |
| 17 | AUDIO ALARM MODULE CONNECTOR |
| 18 | JUNCTION BLOCK 1 CONNECTOR C8 (FROM I/P HARNESS 1) |
| 19 | JUNCTION BLOCK 1 CONNECTOR C6 (FROM I/P HARNESS 1) |
GM Geo Prism 1996 Junction Fuse Panel/Board – Fuse Symbol Map
