GM Fleetwood Broght 1997 Location Fuse Box/Block Circuit Breaker Diagram

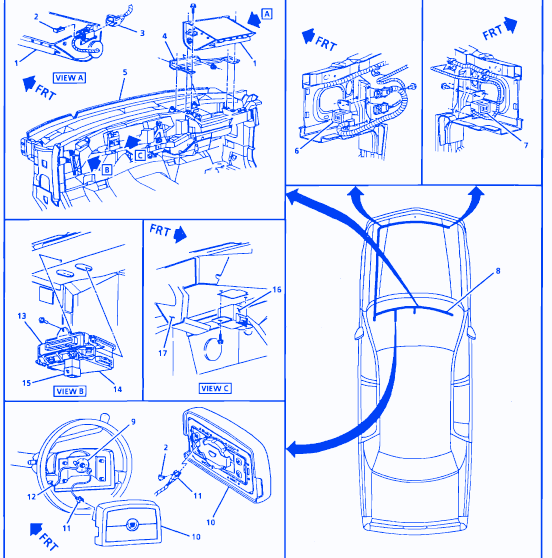

| SYMBOL | DESCRIPTION |
|---|---|
| 1 | Passenger Inflator Module |
| 2 | Connectot Position Assurance (CPA) |
| 3 | Passenger Inflator Module Jumper |
| 4 | Passenger Inflator Module Bracket |
| 5 | Instrument Panel |
| 6 | LH Foward Discriminating Sensor |
| 7 | RH Foward Discriminating Sensor |
| 8 | Sir Wiring Harness |
| 9 | Sir Coil Assembly |
| 10 | Driver Inflator Module |
| 11 | Driver Inflator Module Harness Connector |
| 12 | Horn Lead |
| 13 | EBTCM |
| 14 | DERM |
| 15 | RAP Power Relay |
| 16 | Dual Pole Arming Sensor |
| 17 | Steering Column Support |
