Geo Storm Hatchback 1993 Junction Fuse Box/Block Circuit Breaker Diagram
| Fuse Symbol | Fuse Map |
|---|---|
| C-1 | Audio |
| C-2 | Elec. IG. |
| C-3 | RR. Wiper Washer |
| C-4 | (FRT. FOG) |
| C-5 | Clock Dome Lamp |
| C-6 | Cigar |
| C-7 | Meter Gauges |
| C-8 | FRT. Wiper Washer |
| C-9 | (Spare) |
| C-10 | RR. DEF |
| C-11 | Engine |
| C-12 | Turn Back-Up |
| C-13 | — |
| C-14 | — |
| C-15 | Tail Illumi |
| C-16 | IG. Coil |
| C-17 | (Elec. Outlet) |
| C-18 | — |
| C-19 | Stop A/T Cont |
| C-20 | Horn Hazard |
| C-21 | Starter |
| C-22 | Sir-1 |
| C-23 | Sir-2 |

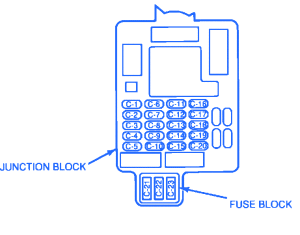

Geo Storm Hatchback 1993 Junction Fuse Panel/Board – Fuse Symbol Map
