Ford Windstar SEL 2001 Fuse Box/Block Circuit Breaker Diagram
| FUSE SYMBOL | AMPS | CIRCUITS PROTECTED |
|---|---|---|
| MINI-FUSE | ||
| 1 | 30A | PCM Power relay |
| 2 | 10A | Powertrain Control Module (PCM), Front Electronic Module (FEM) |
| 3 | 10A | A/C Clutch |
| 4 | 25A | Horn |
| 5 | 15A | Fuel Pump |
| 6 | 30A | Front Wiper/washer |
| 7 | 25A | Rear Wiper/washer |
| 8 | - | Not Used |
| 9 | 15A | Right Headlamp |
| 10 | 15A | Right park/Turn lamps |
| 11 | 15A | Left Park/Turn Lamps, Front Electronic module (FEM) |
| 12 | 15A | Left Headlamp |
| 13 | 10A | Generator |
| 14 | 10A | Front Electronic Module (FEM) |
| 15 | 20A | Trailer Tow, Park Lamps |
| 16 | 20A | Trailer Tow, Stop/Turn Lamps |
| 17 | - | Not Used |
| 18 | - | Not Used |
| 19 | 15A | Engine Controls |
| 20 | 15A | Engine Controls, PATS |
| 21 | - | Not Used |
| 22 | - | Not Used |
| 23 | - | Not Used |
| 24 | - | Not Used |
| MAXI-FUSE | ||
| 101 | 40A | Anti-lock Brake Control Module |
| 102 | 40A | Anti-lock Brake Control Module |
| 103 | 40A | Switched System Power Relay #4 |
| 104 | 30A | Left Power Seat, Left Power Lumbar, Driver Seat Module |
| 105 | 30A | Ignition Switch, Starter Interupt Relay |
| 106 | 30A | Accessory Delay Relay, Power Mirrors, Adjustable Pedal |
| 107 | 50A | cooling Fans |
| 108 | - | Not Used |
| 109 | 30A | Heated Seats |
| 110 | 50A | Right Power Sliding Door |
| 111 | 40A | Central Junction Box |
| 112 | 30A | Trailer Tow , Electric Brake |
| 113 | 30A | Front Electronic Module (FEM) |
| 114 | 40A | Switched System Power Relay #3 |
| 115 | 50A | Central Junction Box |
| 116 | 30A | Rear Window Defrost |
| 117 | 40A | Auxiliary Blower motor |
| 118 | 50A | Left Power Sliding Door |
| 119 | 30A | Central Junction Box |
| 120 | 40A | Front Blower Motor |
| 121 | 20A | Ignition Switch |
| 122 | 40A | Right power Seat, Right Power Lumbar |

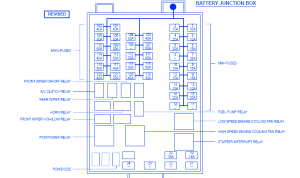

Ford Windstar SEL 2001 Fuse Panel/Board – Fuse Symbol Map
