Ford Windstar G.L 1996 Fuse Box/Block Circuit Breaker Diagram
| FUSE POSITION | AMPS | CIRCUIT PROTECTED |
|---|---|---|
| 1 | 10A | Data Link Connector (DLC), Power Mirrors |
| 2 | 5A | Start Interrupt Relay, GEM |
| 3 | 5A | Instrument Illumination |
| 4 | 15A | LH Headlamp (Low Beam) |
| 5 | 15A | Trailer Park Lamps |
| 6 | - | Not Used |
| 7 | 15A | Brake On/Off (BOO) Switch, Stop Lamps, Trailer RH and LH Relays, Brake Shift Interlock, RAP Module, Speed Control Module, Trailer Electric Brake Module, ABS Module, PCM |
| 8 | 25A | Radio Amplifier, Subwoofer Amplifier |
| 9 | 10A | Park Lamps, Side Marker Lamps, License Lamps, Trailer Park Lamp Relay, Electric Brake Module |
| 10 | 15A | RH Headlamp (Low Beam) |
| 11 | 15A | I/P Fuses 3 and 9 |
| 12 | 10A | GEM, RAP Module, Auxiliary Warning Module, Overhead Console |
| 13 | 15A | Radio, Remote Headphone, CD Disc Changer |
| 14 | 5A | Instrument Cluster, Day/Night Mirror, Auxiliary Warning Module, Air Bag |
| 15 | - | Not Used |
| 16 | 20A | Horn |
| 17 | 15A | Fog Lamps |
| 18 | 25A | Windshield Wiper/Washer System |
| 19 | 15A | GEM, RAP Module |
| 20 | 25A | Ignition Coil, PCM Power Relay |
| 21 | 10A | Shiftlock Actuator, Rear Window Defrost, GEM, Air Bag Module, A/C - Heater Control Switch, Blend Door Actuator |
| 22 | 20A | power Plug, Rear Cigar Lighter |
| 23 | 15A | Flash to Pass |
| 24 | 20A | Liftgate Wiper/Washer System |
| 25 | 15A | Instrument Cluster, Turn Signal Lamps |
| 26 | 15A | Trailer Turn/Stop/Hazard Lamps |
| 27 | 15A | Electronic Flasher |
| 28 | 20A | Instrument Panel Cigar Lighter |
| 29 | 15A | Interior Lamps, Battery Saver Relay, Delayed Accessory Relay |
| 30 | 15A | ABS Module, Speed Control Module, Brake Pressure Switch |
| 31 | 10A | Rear Air Suspension |
| 32 | - | Not Used |
| 33 | 15A | ABS Lamp Relay, Back-Up Lamps, GEM Rap Module, Day/Night Mirror |
| 34 | - | Not Used |
| 35 | 15A | Instrument Cluster , PCM Power Rerlay |
| 36 | 30A | Front Blower Motor |
| 37 | 20A | Power Door Locks |
| 38 | 15A | LH and RH High Beams |
| 39 | 10A | Heated Outside Mirrors |
| 40 | - | Not Used |
| 41 | 5A | Autolamp Relay, Day/Night Mirror |
| 42 | - | Not Used |
| 43 | - | Not Used |
| 44 | - | Not Used |

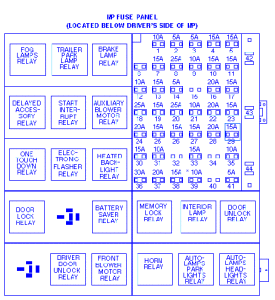

Ford Windstar G.L 1996 Fuse Panel/Board – Fuse Symbol Map
