Fuse Symbol | Amps | Fuse Map |
---|---|---|
1 | 15A | Brake & Hazard Warning Lights, A/C Fan Controller (1987-89) Shift Lock (1993-94) |
2 | 8.25A | Windshield Wiper/Washer, Interval Wiper, Low Washer Fluid Idicator |
3 | - | No Additional Information |
4 | 15A | Taillights & Side Marker Lights, License & Parking Lights, Dimming Relay, Illumination (All), Headlights On Chime, A/C Fan Controller |
5 | 15A | Turn Signals & Back Up Lights, A/C Fan Cntroller Relay, Heated Rear Window Relay, A/C Heater Control, Brake Shift Interlock Solenoid |
6 | 20A | Power Window Relay, Decklid Release, Illuminated Entry Module, Anti-Theft System, Heated Rear Window Relay, Clock, Speed Control Module |

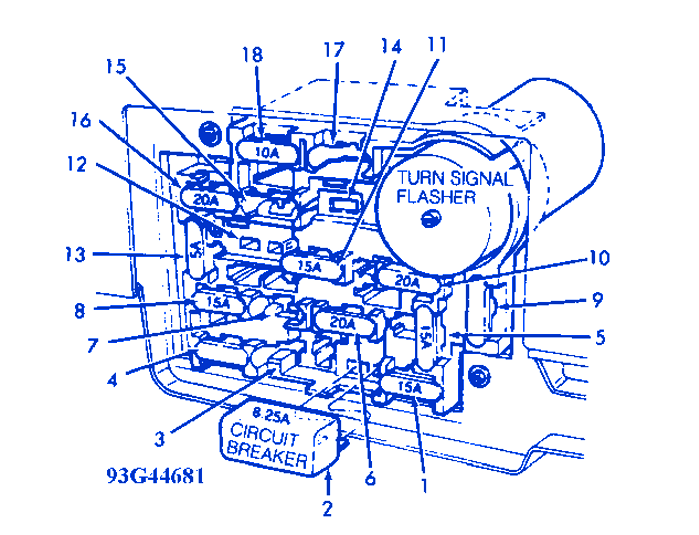

Ford Tempo 2002 Main Fuse Panel/Board – Fuse Symbol Map
