Ford Ranger Batter 2005 Junction Fuse Box/Block Circuit Breaker Diagram
| Fuse | Amps | Circuits Protected |
|---|---|---|
| F1.1 | 40A | Smart Junction Box (SJB) |
| F1.2 | - | Not Used |
| F1.3 | 40A | Smart Junction Box (SJB) |
| F1.4 | - | Not Used |
| F1.5 | 50A | Smart Junction Box (SJB) |
| F1.6 | - | Not Used |
| F1.7 | 40A | Starter Relay (11450) |
| F1.8 | - | Not Used |
| F1.9 | 40A | Ignition Switch (11572) |
| F1.10 | - | Not Used |
| F1.11 | 30A | PCM Power Relay |
| F1.12 | - | Not Used |
| F1.13 | 30A | Blower Motor Relay |
| F1.14 | - | Not Used |
| F1.15 | - | Not Used |
| F1.16 | - | Not Used |
| F1.17 | 40A | ABS Control Module (2C219) |
| F1.18 | - | Not Used |
| F1.19 | 20A | Engine Cooling Fan Relay |
| F1.20 | - | Not Used |
| F1.21 | 10A | Powertrain Control Module (PCM)(12A650) |
| F1.22 | - | Not Used |
| F1.23 | 20A | Fuel Pump Relay |
| F1.24 | - | Not Used |
| F1.25 | 10A | A/C Clutch Relay |
| F1.26 | - | Not Used |
| F1.27 | - | Not Used |
| F1.28 | - | Not Used |
| F1.29 | - | Not Used |
| F1.30 | - | Not Used |
| F1.31 | - | Not Used |
| F1.32 | - | Not Used |
| F1.33 | 30A | ABS Control Module (2C219) |
| F1.34 | - | Not Used |
| F1.35 | - | Not Used |
| F1.36 | - | Not Used |
| F1.37 | - | Not Used |
| F1.38 | 7.5A | Trailer Tow Connector (15A416)- Right Turn |
| F1.39 | - | Not Used |
| F1.40 | - | Not Used |
| F1.41 | 15A | Evaporative Emission (EVAP) Canister Vent Valve (9F945), Heated Oxygen Ssensor (HO2S) #11(9F472), Heated Oxygen Sensor (HO2S) #12 (9G444), EGR Stepper Motor, 5R44E Transmission |
| F1.42 | 7.5A | Trailer Tow Connector (15A416) - Left Turn |
| F1.43 | - | Not Used |
| F1.44 | - | Not Used |

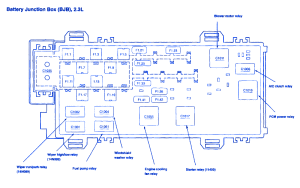

Ford Ranger Batter 2005 Junction Fuse Panel/Board – Fuse Symbol Map
