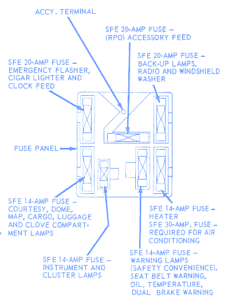

Ford Puma 1998 Pin Out Fuse Box/Block Circuit Breaker Diagram

Ford Puma 1998 Pin Out Fuse Box/Block Circuit Breaker Diagram



FUSE MAPAMPS
Emergency Flasher, Cigar Lighter and Clock Feed20A
Courtesy, Dome, Map, Cargo, Luggage and Clove Compartment Lamps14A
(RPO) Accessory Feed20A
Warning Lamps (Safety Convenience), Seat Belt Warning, Oil, Temperature, Dual Brake warninng14A
Back-Up Lamps, Radio and Windshield Washer20A
Heater14A
Required for Air Conditioning30A

Ford Puma 1998 Pin Out Fuse Panel/Board – Fuse Symbol Map
