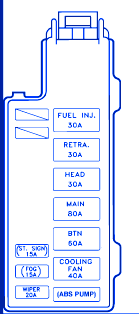

Ford Probe 1992 Fuse Box/Block Circuit Breaker Diagram

Ford Probe 1992 Fuse Box/Block Circuit Breaker Diagram



FUSEAMPSWIRE COLORCIRCUIT PROTECTED
FUEL INJ30ABRElectronic Engine Controls, Charging System, Meter & Warning System
RETRA30ABK/WHeadlamp Retractors
HEAD30ARHeadlamps
MAIN80A(GL) 100A(GT/LX)BKAll Circuits (Except Starter Motor/Relay)
BTN60AW/RDoor Lock, Stop, Hazard, Room, Belt, Cigar, Power Seat, & Tail Fuses
COOLING FAN40ABK/RCooling System, Charging System & Electronic Engine Controls
ABS PUMP60A(GT/LX)BL/RAnti-Lock Brake System
HEATER40ABLHeating,AC & Programed Ride Control System
ST.SIGN (START SIGNAL)15A(GL/GT)BK/PKECA,Fuel Pump Relay
FOG15A(GT)R/WFog Lamps
WIPER20ABK/RFront Wiper/Washer
AIR COND/ FUEL PUMP20AGNHeating, Air Conditioner & Electronic Engine Controls
AUDIO15AGN/WRadio, Hood Lamp & Remote Control Mirors

Ford Probe 1992 Fuse Panel/Board – Fuse Symbol Map
