Ford Mustang 2007 Delay Relay Fuse Box/Block Circuit Breaker Diagram
| Fuse | Amps | Circuits Protected |
|---|---|---|
| F3 | 10A | Blower Motor Relay, Windshield Wiper Motor |
| F4 | 5A | Exterior Rear View Mirror Switch |
| F5 | - | Not Used |
| F6 | 5A | Master Window Adjust Switch, Window Adjust Switch, Passenger Side, Door Lock Switch, Driver Side, Door Lock Switch, Passenger Side |
| F7 | 10A | Electrchromatic Inside Mirror Unit |
| F8 | 10A | Instrument Cluster (IC), Data Link Connector (DLC) |
| F9 | - | Not Used |
| F10 | 5A | Climate Control Assembly,Overhead Console |
| F11 | 5A | Not Used |
| F12 | 5A | Climate Control Assembly |
| F13 | - | Not Used |
| F14 | 5A | A/C Clutch Cycling Pressure Switch |
| F15 | 10A | Stoplamp Switch 1 |
| F16 | 5A | Instrument Cluster (IC) |
| F17 | 10A | Occuper Classification System Module (OCSM), Restraints Control Module (RCM), Hazard Flasher Switch |
| F18 | 10A | Anti-Lock Brake System (ABS) Module |
| F19 | 5A | PCM Power Diode, Passive anti-theft Transceiver Module, Instrument Cluster (IC) |
| F20 | 10A | Audio Control Module (ACM) |
| F21 | 10 | Starter Relay Circuit |

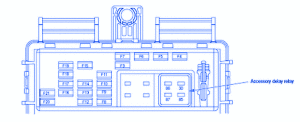

Ford Mustang 2007 Delay Relay Fuse Panel/Board – Fuse Symbol Map
