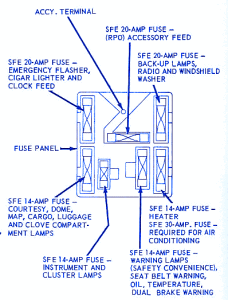

Ford Montego Classic 1966 Fuse Box/Block Circuit Breaker Diagram

Ford Montego Classic 1966 Fuse Box/Block Circuit Breaker Diagram



FUSE MAPAMPS
Emergency Flasher, Cigar Lighter and Clock Feed20A
Courtesy, Dome, Map, Cargo, Luggage and Clove Compartment Lamps14A
(RPO) Accessory Feed20A
Warning Lamps (Safety Convenience), Seat Belt Warning, Oil, Temperature, Dual Brake warninng14A
Back-Up Lamps, Radio and Windshield Washer20A
Heater14A
Required for Air Conditioning30A

Ford Montego Classic 1966 Fuse Panel/Board – Fuse Symbol Map
