Ford Jamboree Class 2003 Fuse Box/Block Circuit Breaker Diagram

Ford Jamboree Class 2003 Fuse Box/Block Circuit Breaker Diagram

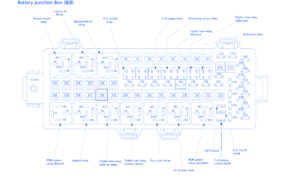

No.Relay/Dioda Map
Relay Map
1Blower Motor Relay
2Low to Hi Relay
3Heated Mirror Relay
4A/C Clutch Relay
5Fuel Pump Relay
6Reversing Lamps Relay
7Trailer Tow Relay, Left Turn
8Trailer Tow Relay, Right Turn
9Stoplamp Relay
10Power Relay (Diesel)
11Starter Relay
12Trailer Tow Relay, Parking Lamp
13Trailer Tow Relay, Battery Charge
14Run/Start Relay
15Hi to Low Relay
16PCM Power Relay (Gasoline)
Diode Map
1OTIS Diode
2A/C Clutch Diode
3Fuel Pump Motor Diode

Ford Jamboree Class 2003 Fuse Panel/Board – Fuse Symbol Map
