Ford Granada 1992 Turn Signal Flasher Fuse Box/Block Circuit Breaker Diagram
| Fuse Position | Amps | Circuit Protected |
|---|---|---|
| 1 | 15A | Stop/Hazard Lights; Speed Control |
| 2 | - | Not Used |
| 3 | - | Not Used |
| 4 | 15A | Exterior Lights; Instrument Illumination |
| 5 | 15A | Turn Lights; Backup Lights |
| 6 | 15A | Speed Control; 4-Wheel Drive Indicator; Auxiliary Battery Control; Digital Clock; Rear Window Defrost; feedbacked back Carburetor Control (4.9L) |
| 7 | - | Not Used |
| 8 | 15A | Courtesy, Dome, Cargo Lights; Warning Buzzer |
| 9 | 30A | Heater; A/C-Heater |
| 10 | - | Not Used |
| 11 | 15A | Radio |
| 12 | 25A | Tailgate Power Window; Power Mirror |
| 30A c.b | Power Door Lock | |
| 13 | - | Not Used |
| 14 | 25A | Tailgate Power Window |
| 20A c.b | Power Windows | |
| 15 | 10A | Auxiliary Fuel Tank Selector |
| 16 | 20A | Horn; Cigar Lighter |
| 17 | 5A | Instrument Illumination, Digital Clock |
| 18 | 15A | Seatbelt Buzzer; Warning Indicators; EEC; Carburetor Circuits; Tachometer; Choke Heater; Diesel Glow Plug Control; Diesel Indocators; Electric Fuel Pump Control (7.5L); Upshift Indicator(4.9L) |

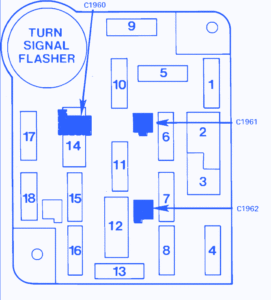

Ford Granada 1992 Turn Signal Flasher Fuse Panel/Board – Fuse Symbol Map
