Ford Fairlane 2004 Fuse Box/Block Circuit Breaker Diagram
| FUSE MAP | AMPS |
|---|---|
| Back-Up Lamps, Seat Belt Reminder P-R-N-D-2-1 Light, Radio, Visual Check Panel | 14A |
| Heater | 14A |
| Instr. Panel Illum, Clock Light, Ash Tray | 2.5A |
| Courtesy Light, Glove Box Light, Luggage Compartment Light, Clock, Tachometer, Radio Pilot | 7.5A |
| Lighter | 14A |
| Back-Up Lights, Radio, P-R-N-D-2-1 Light, Defogger & Turn Signal Circuit | 14A |
| Heater Fan | 14A |
| Instrument Lighter | 2.5A |
| Courtesy Lights, Console Rear Light, Clock | 7.5A |
| Lighter and Emergency Flasher | 20A |
| Emergency Flasher, Cigar Lighter and Clock Feed | 20A |
| Courtesy, Dome, Map, Cargo, Luggage and Glove Compartment Lamps | 14A |
| (RPD) Accessory Feed | 20A |
| Instrument and Cluster Lamps | 14A |
| Warning Lamps (Safety Convenience), Seat Belt Warning, Oil, Temperature, Dual Brake Warning | 14A |
| Back-Up Lamps, Radio and Windshield Washer | 20A |
| Heater | 14A |
| Required for Air Conditioning | 30A |

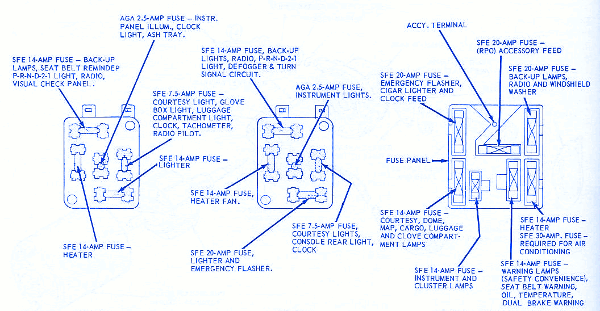

Ford Fairlane 2004 Fuse Panel/Board – Fuse Symbol Map
