Ford Escort ZX2 1998 IP Electrical Circuit Wiring Diagram

Ford Escort ZX2 1998 IP Electrical Circuit Wiring Diagram



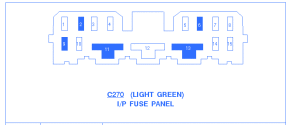

PINCIRCUITCIRCUIT FUNCTION
1524R/YRemote Anti-Theft Personality Module
2--Not Used
3301R/BKRear Park Lamps, License Lamps, A/T Select Illumination
4331P/WDoor Courtesy Lamp Switches, Remote Anti-Theft Personality Module
5368BLLeft Rear Park/Stop/Turn Lamps
6--Not Used
7525PKDrivers Seat Belt Buckle Switch
8441Bl/BKRemote Anti-Theft Personality Module Power
9--Not Used
10330BL/RLuggage Compartment Lamp, Remote Anti-Theft Personality Module
11--Not Used
12352GN/YShift Lock Actuator
13--Not Used
14160BK/YShift Lock Actuator
15367YRight Rear Park/Stop/Turn Lamps
