Ford Econoline 150 1985 Fuse Box/Block Circuit Breaker Diagram
| Fuse Symbol | Fuse Map | Amps |
|---|---|---|
| 1 | Tail Lamps, Marker Lamps, License Plate and Parking Lamps, Horns | 18A |
| 2 | Ins. Pnl. & Cluster Lamps, Ashtray, Trans. Ind. Lamp, Radio, Heater, A/C Lamp, Headlamp & W/S Wiper Illum | 3A |
| 3 | Throttle Solenoid | 15A |
| 4 | Fuel Tank Solenoid | 7.5A |
| 5 | W/S Wiper (Circuit Breaker) Seat Belt Warning, Aux. | 7.5A |
| 6 | Heater and or A/C | 35A |
| 7 | Emergency Warning Flashers and Stop Lamp | 15A |
| 8 | Dome-Cargo & Courtesy Lamps, Cigarette Lighter, Clock | 20A |
| 9 | Accessory Feed, Speed Control | 20A |
| 10 | Turn Signal W/S Washer & Back-Up Lamps | 15A |
| 11 | Radio, Premium Sound System | 7.5A |

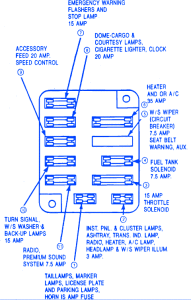

Ford Econoline 150 1985 Fuse Panel/Board – Fuse Symbol Map
