Ford Crown 1990 Fuse Box/Block Circuit Breaker Diagram

Ford Crown 1990 Fuse Box/Block Circuit Breaker Diagram

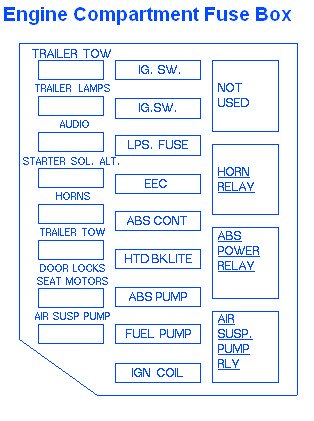

FUSE/RELAY MAP
TRAILER TOW
TRAILER LAMPS
AUDIO
STARTER SOL. ALT
HORNS
TRAILER TOW
DOOR LOCKS SEAT MOTORS
AIR SUSP PUMP
IG. SW
IG. SW
LPS FUSE
EEC
ABS CONT
HTDBKLITE
ABS PUMP
FUEL PUMP
IGN COIL
HORN RELAY
ABS POWER RELAY
AIR SUSP PUMP RELAY

Ford Crown 1990 Fuse Panel/Board – Fuse Symbol Map
