Ford Corcel 1995 Power Distribution Fuse Box/Block Circuit Breaker Diagram
| Fuse Position | Amps | Circuits Protected |
|---|---|---|
| FUSE MAXI | ||
| 1 | 30A | Rear Window Defrost Relay |
| 2 | 30A | PCM Power Relay |
| 3 | 20A | Fuel Pump Relay, RAP Module |
| 4 | 20A | Headlamps, Autolamps, Multi-Function Switch |
| 5 | 30A | Power Seats, Power Lumbar, Door Lock/Unlock Relays, ACCY Delay Relay, Memory Seat Control |
| 6 | 30A | 4WABS Main Relay |
| 7 | 20A | Trailer Tow Relays |
| 8 | 30A | Battery Saver, Headlamp Relay |
| 9 | 50A | Blower Motor Relay, Blower Motor |
| 10 | 30A | 4WABS Pump Relay |
| 11 | 20A | Horn Relay, Powertrain Control Module (PCM) |
| 12 | 50A | Air Ride Control Relay |
| 13 | 60A | Hazard Flasher, Brake On/Off Switch, Cigar Lighter, Power Antenna, Power Mirrors, Autolamps, Instrument Cluster, GEM, Radio, Blower Motor Relay, Memory Seats, EATC, Message Center |
| 14 | 60A | Ignition Switch |
| Fuse Position | Amps | Circuits Protected |
|---|---|---|
| FUSE MINI | ||
| 1 | 30A | Premium Sound/JBL Amplifier, Subwoofer Amplifier |
| 2 | 15A | Liftgate Wiper Relays |
| 3 | 30A | Auxiliary Power |
| 4 | 20A | Tranfer Case Relay |
| 4** | 10A | Airbag Diagnostic Monitor |
| 5 | 15A | Ai Ride Control (ARC) |
| 6 | 15A | Generator/Voltage Regulator |
| 7 | 10A | Air Bag Diagnostic Monitor |
| 7** | 20A | Tranfer Case Relay |
| 8 | 15A | Foglamp Relay, Daytime Running Lamp Module |
| 9 | - | Not Used |
| 10 | - | Not Used |
| 11 | 20A | Hego System |

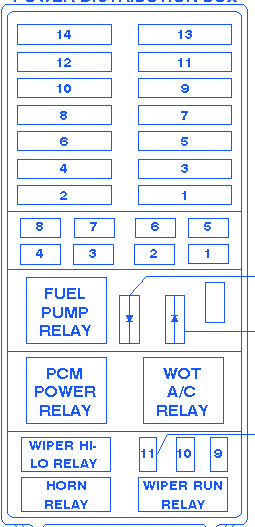

Ford Corcel 1995 Power Distribution Fuse Panel/Board – Fuse Symbol Map
