Ford Corcel 1995 Main Fuse Box/Block Circuit Breaker Diagram
| Fuse | Amps | Circuits Protected |
|---|---|---|
| CIGAR LTR | 20A | Cigar Lighter |
| STOP/HAZ | 15A | Turn/Stop/Hazard Lamps |
| CLUSTER | 5A | Instrument Cluster |
| ACC | 10A | Warning Chime, Radio |
| WIPERS | 30A | Interval Wiper/Washer |
| OBD II | 10A | Data Link Connector (DLC) |
| PANEL LPS | 5A | Instrument Illumination |
| INT LPS | 10A | Instrument Illumination, Courtesy Lamps |
| POWER WDO | 20A CB | Power/Windows |
| TURN SIG | 10A | Backup Lamps, Turn/Stop/Hazard Lamps |
| ANTI-LOCK | 10A | Anti-lock Power Relay, Anti-lock Brake Control MOdule |
| PARK LPS | 10A | Exterior Lamps |
| AIR BAG | 10A | Air Bag |
| A/C | 10A | A/C |
| SEAT/LOCK | 20A CB | Power Door Locks, Remote Keyless Entry Power Seats, Anti-Theft |
| RUN | 5A | Shift Lock, DRL, ABS, Air Bag, Washer Fluid Level Sensor |

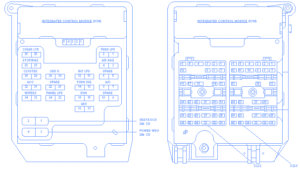

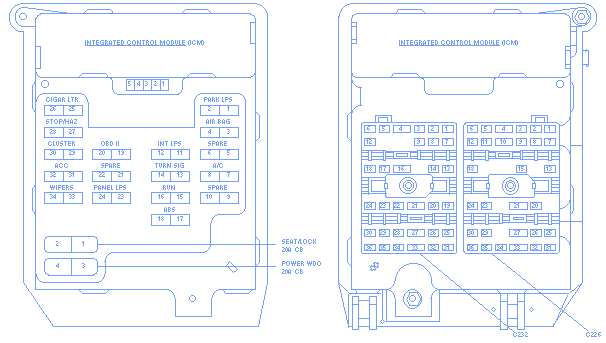

Ford Corcel 1995 Main Fuse Panel/Board – Fuse Symbol Map
