Ford Clubwagon 1992 Interior Fuse Box/Block Circuit Breaker Diagram
| Fuse Position | Amps | Circuit Protected |
|---|---|---|
| 1 | 15A | Stop/Hazard Lamp, Speed Control |
| 2 | 8 25 C.B | Winshield Wiper Motor, Wiper Control module |
| 3 | - | Not Used |
| 4 | 20A | Turn Lamp, License Lamps, Anti-theft Module, Warning Chime, Flash to Pass, Trailer Running Lamp Relay, Trailer B/U Lamp Relay, Running Lamps, RABS |
| 5 | 15A | Air Bag Module, DRL Module, AUX, Battery Relay, Starting System, Transmission Control Switch, Backup Lamps, Turn Lamps |
| 6 | 20A | Speed Control, Remote Keyless Entry Module, Illuminated Entry, Accessory Tap, Anti-Thaft Module, Trailer Battery Charge Relay |
| 7 | 30A | Ignition System, Instrument Cluster, PIA Engine (Diesel Only, PCM Power Relay, Ignition Control Module |
| 8 | 15A | Courtesy Lamp Switch, Illuminated Entry, Power Mirrors, Visor Lamps, Power Door Lock, Anti-Theft Indicator, Radio Memory, Dome/Map Lamp, PSOM, Remote Keyless Entry Module |
| 9 | 15A | A/C Switch |
| 10 | 15A or | Cigar Lighter |
| 20A | Cigar Lighter, Rear Power Outlet | |
| 11 | 15A | Radio and Clock, Main Light Switch |
| 12 | 20A C.B | Anti-Theft Module, Remote Keyless Entry Module or W/O A/T Power Door Locks, Memory Lock Module |
| 13 | 5A | Instrument Panel Illumination Lamps |
| 14 | 20A C.B | Power Windows |
| 15 | 20A | Air Bag Module |
| 16 | 30A | Power Lumber, Moduled Vehicle Power |
| 17 | 20A | RABS, PSOM |
| 18 | 15A | Instrument Panel Warning Lamps, Warning Chime |

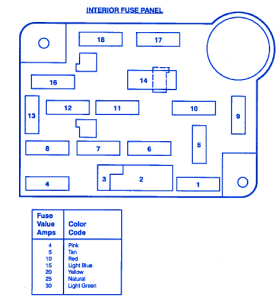

Ford Clubwagon 1992 Interior Fuse Panel/Board – Fuse Symbol Map
