Ford Capri 1986 Fuse Box/Block Circuit Breaker Diagram
| Fuse Position | Amps | Circuits Protected |
|---|---|---|
| 1 | 15A | Stop/Hazzard Lights, Speed Control |
| 2 | 6A c.b. | Interval Wiper |
| 4 | 10A | Exterior Lights, Instrument Illumination |
| 5 | 15A | Turn Lights, Backup Lights |
| 6 | 20A | A/C Clutch, Speed Contro, Rear Window Defrost, Trunk Release, Digital Clock, Light Out Warning |
| 7 | - | Not Used |
| 8 | 15A | Courtesy Lights, Clock, Key Warning,Fuel Filler Door Release |
| 9 | 15A or 30A | Heater Blower (15A), A/C Blower (30A) |
| 10 | 20A | Passing Beam |
| 11 | 15A | Radio, Premium Sound |
| 12 | 20A c.b. | Power Door Locks |
| 13 | 5A | Instrument Illumination |
| 14 | 20A c.b | Power Windows |
| 15 | - | Not Used |
| 16 | 20A | Horn, Cigar Lighter, Digital Clock |
| 17 | - | Not Used |
| 18 | 15A | Seatbelt Buzzer, Warning Indicators, Carburetor Circuits, Tachometer, Low Fuel Warning, Idle Tracking Air Control, Cooling Fan/Compressor Clutch Control |

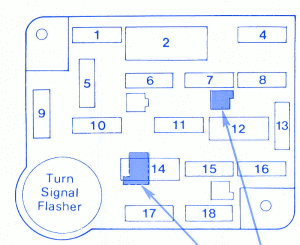

Ford Capri 1986 Fuse Panel/Board – Fuse Symbol Map
