Ford Aerostar 1997 Fuse Box/Block Circuit Breaker Diagram
| Fuse Position | Amps | Circuit Protected |
|---|---|---|
| 1 | 15A | Turn/Stop/Hazard Lamps |
| 2 | 6 c.b. | Windshield Wiper/Washer |
| 3 | - | Not Used |
| 4 | 15A | Exterior Lamps, Instrument Illumination |
| 5 | 15A | Turn/Stop/Hazard Lamps, Electronic Engine Module, Rear Window Defrost, Shift Lock, Daytime Running Lamps, Air Bag Restraint System |
| 6 | 20A | Speed Control, Warning Chime, Illuminated Entry, A/C Heater |
| 7 | 20A | Rear Anti-Lock Brakes |
| 8 | 15A | Interior Lamps, Radio, Instrument Cluster, Power Mirror |
| 9 | 30A | A/C-Heater |
| 10 | 15A | Air Bag Restraint System |
| 11 | 15A | Radio |
| 12 | 30A | Power Lumbar Seats, Headlamps, Horns |
| 13 | 5A | Instrument and Control Illumination |
| 14 | 20 c.b. | Power Windows |
| 15 | 15A | Electronic 4 Wheel Drive |
| 16 | 20A | Front Cigar Lighter, Rear Cigar Lighter |
| 17 | 10A | Instrument Cluster |
| 18 | 15A | Warning Chime, Instrument Cluster, Liftgate Wiper Washer |
| Note: Power Door Locks Are Protected By a 30 Amp in-line Fuse | ||

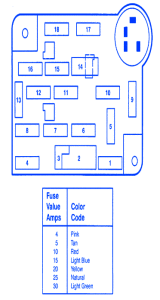

Ford Aerostar 1997 Fuse Panel/Board – Fuse Symbol Map
