Fiat X19 FI 1985 Fuse Box/Block Circuit Breaker Diagram
| Fuse/Relay Symbol | Fuse/Relay Map |
|---|---|
| E1 | Radiator Fan Relay |
| E2 | Parking Lights and Conceated Headlights Control |
| E3 | Right Head Light Motor Relay |
| E4 | Headlight High Beam Relay |
| E5 | Left Headlight Motor Relay |
| E6 | Power Window Relay |
| E7 | Back Window Defogger Relay |
| E8 | Horn Relay |
| 1 | Courtesy Light Delayer |
| 2 | A/C Condenser Fan Relay |
| 3 | A/C Evaporator Relay |
| 4 | Seats Belts Relay |
| 5 | Compressor Clutch Relay |
| 6 | A/C Cut-Off (at Engine Starting) |
| 7 | Seats Belts Delayer |
| 8 | Wiper Delay Timer |
| 9 | Turn/Hazard Flasher |

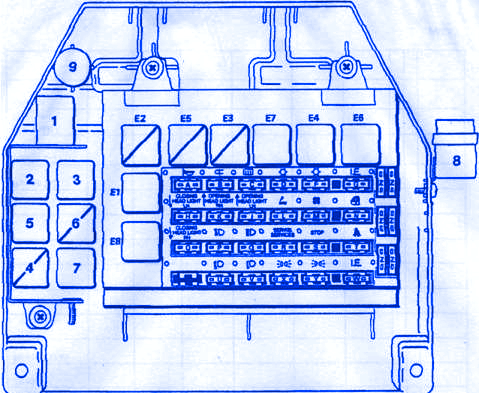

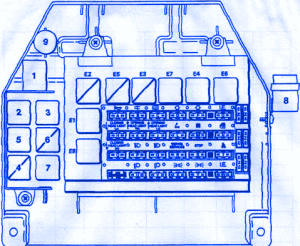

Fiat X19 FI 1985 Fuse Panel/Board – Fuse Symbol Map
