Eagle Premier 1992 Relay Fuse Box / Block Circuit Breaker Diagram

Eagle Premier 1992 Relay Fuse Box / Block Circuit Breaker Diagram
Eagle Premier 1992 Relay Fuse Box / Block Circuit Breaker Diagram

Relay locationFunction
APower antenna
BHeated rear window
CLow beam headlamp
DHigh beam headlamp
E
FIlluminated entry
GHorn
JPark lamps
K

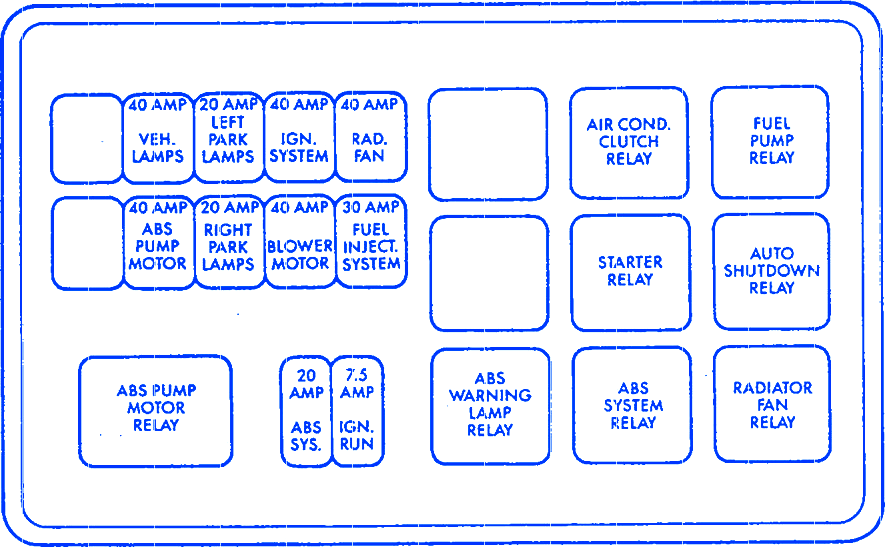

Eagle Premier 1992 Relay Fuse Panel / Board – Fuse Symbol Map
