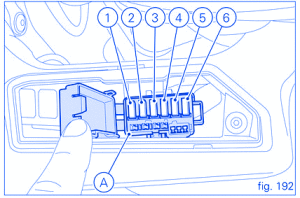

Ducati Multistrada MTS1200 2010 Fuse Box/Block Circuit Breaker Diagram
| Pos. | El.item | Rating |
|---|---|---|
| 1 | Black Box System (BBS) | 7.5A |
| 2 | Power Outlets/Navigator/Alarms | 10A |
| 3 | ABS2 | 25A |
| 4 | ABS1 | 30A |
| 5 | Fans | 10A |
| 6 | Diagnosis | 7.5A |
Ducati Multistrada MTS1200 2010 Fuse Panel/Board – Fuse Symbol Map
