Ducati Multistrada 2014 Mini Fuse Box/Block Circuit Breaker Diagram
| Pos. | Consumer | Rating |
|---|---|---|
| 1 | Black Box System (BBS) | 7.5A |
| 2 | Power Outlet/Navigator/Alarms | 10A |
| 3 | ABS 2 | 25A |
| 4 | ABS 1 | 30A |
| 5 | Fans | 10A |
| 6 | Diagnosis | 7.5A |

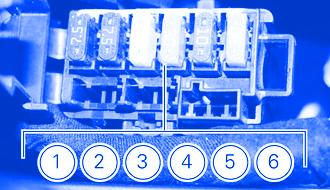

Ducati Multistrada 2014 Mini Fuse Panel/Board – Fuse Symbol Map
