Ducati Multistrada 1.2 2007 Mini Fuse Box/Block Circuit Breaker Diagram
| Pos. | El. Item | Rating |
|---|---|---|
| 1 | Lights | 20A |
| 2 | Instrument Panel | 10A |
| 3 | ECU | 5A |
| 4 | Key-Sense | 15A |
| 5 | Injection Solenoid | 20A |
| 6 | Throttle Opening Starter Motor Solenoid (ETV) | 10A |

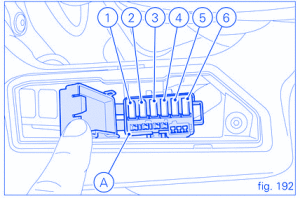

Ducati Multistrada 1.2 2007 Mini Fuse Panel/Board – Fuse Symbol Map
