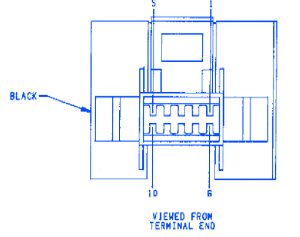

Dodge SXT Magnum 2010 Control Fuse Box/Block Circuit Breaker Diagram
| CAV | CIRCUIT | FUNCTION |
|---|---|---|
| 1 | Z2 22BK/LG | SENSOR GROUND |
| 2 | D2 20WT/BK | SERIAL BUS (-) |
| 3 | D1 20VT/BR | SERIAL BUS (+) |
| 4 | - | - |
| 5 | L60 18TN | RIGHT FRONT TURN SIGNAL |
| 6 | F11 22RO/WT | FUSED IGNITION OFF (5 AMP) |
| 7 | - | - |
| 8 | F33 20PK/RD | HEADLAMP FEED |
| 9 | D14 22LB | DECODE-HIGH INSTRUMENT CLUSTER |
| 10 | D13 22OR/DB | DECODE-LOW INSTRUMENT CLUSTER |
Dodge SXT Magnum 2010 Control Fuse Panel/Board – Fuse Symbol Map
