Dodge Neon 1995 Engine Room Fuse Box/Block Circuit Breaker Diagram

Dodge Neon 1995 Engine Room Fuse Box/Block Circuit Breaker Diagram

Fuse(Amp)Application
240AIgnition Switch
340AIgnition Switch & Headlamp Switch
530ASolid State Fan Relay
830ARear Window Defogger Switch
1040AController Anti-Lock Brake
1130AIgnition Switch & Ignition Starter Motor Relay
1310AUnderhood Lamp, Trunk Lamp, Dome Lamp, Right/Left Visor/Vanity Mirror, Map/Reading Lamp, Instrument Cluster, Radio, Time Delay Relay, Remote Keyless Entry Module & Power Mirror Switch
16-Not Used
1820AA/C Compressor Clutch Relay & Controller Anti-Lock Brake
2010ATurn Signal/Hazard Switch
2120AFuel Pump/ASD Relay
2315AHorn Relay
2515AStop Lamp/Vehicle Speed Control Switch

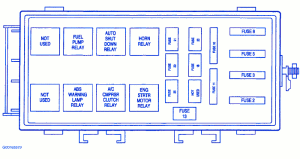

Dodge Neon 1995 Engine Room Fuse Panel/Board – Fuse Symbol Map
