Dodge Eagle Vision TSI 1994 Fuse Box/Block Circuit Breaker Diagram

Dodge Eagle Vision TSI 1994 Fuse Box/Block Circuit Breaker Diagram



CavityDescriptionAmps
1Power Mirror5A
2Radio, Cellular Phone Unit10A
3Turn Signals10A
4Stop Lamps20A
5Head Lamp Sense5A
6Heater, A/C, ATC10A
7Air Bag10A
8CIG, Lighter, Amplifier, Horn20A
9I/P Illum Lamps, Park Lamps15A
10Wipers10A
11Head Lamp-Left High Beam15A
12Head Lamp-Right High Beam15A
13Interior Lamps10A
14Vehicle Speed/Message Center5A
15Head Lamp-Left Lo Beam15A
16Head Lamp-Right Lo Beam15A
17Eatx, Gauges, Prndl5A
18Fuel Pump10A
19Air Bag10A
20Radiator Fan10A
21Blower Motor25A
22Power Windows20A
23Power Seat and Locks20A
24--

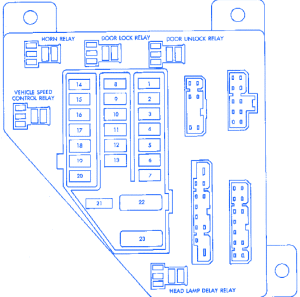

Dodge Eagle Vision TSI 1994 Fuse Panel/Board – Fuse Symbol Map
