Dodge Caravan SE 2002 Fuse Box/Block Circuit Breaker Diagram

Dodge Caravan SE 2002 Fuse Box/Block Circuit Breaker Diagram

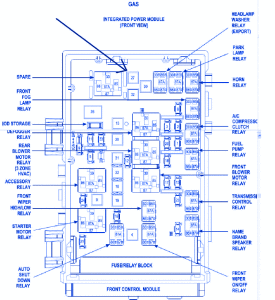

Relay Map
-Front Fog Lamp Relay
-Defogger Relay
-Rear Blower Motor Relay
-Accessory Relay
-Front Wiper High/Low Relay
-Starter Motor Relay
-Auto Shut Down Relay
-Headlamp Washer Relay
-Park Lamp Relay
-Horn Relay
-A/C Compressor Clutch Relay
-Fuel Pump Relay
-Front Blower Motor Relay
-Transmission Control Relay
-Front Wiper On/Off Relay

Dodge Caravan SE 2002 Fuse Panel/Board – Fuse Symbol Map
