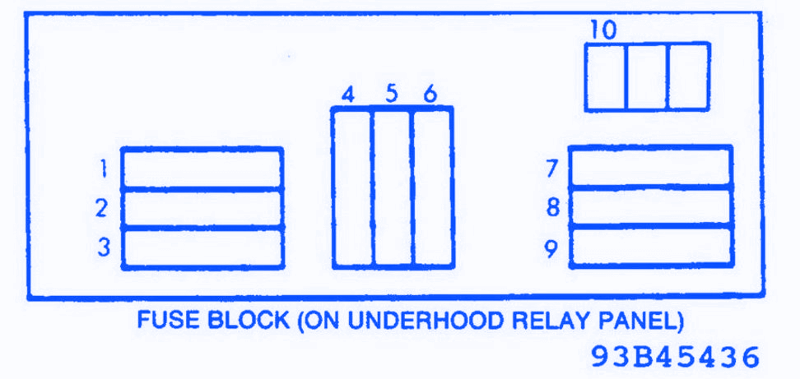

Datsun Camioneta 1998 Under hood Fuse Box/Block Circuit Breaker Diagram

Datsun Camioneta 1998 Under hood Fuse Box/Block Circuit Breaker Diagram



Fuse SymbolAmpsFuse Map
110AECCS, Bulb Check Relay
210ARadiator Fan Relay, Radiator Fan Motor, Air Conditioner System, Daytime Light Control Unit, Theft Warning Relay
320AStoplight Switch, Cruise Control Unit, A/T Control Unit, Shift Lock Control Unit, Anti-Lock Brake System Control Unit, Power Steering Control Unit, Radiator Fan Motor, HICAS Control Unit
410AShift Lock Control Unit, Key Switch
515AFront Foglights, Headlight Washer Motor
620AAnti-Lock Brake System
710AHorn, Time Control Unit, Cruise Control
815ARight Headlight, Daytime Light Control Unit
915ALeft Headlight, Daytime Light Control Unit
1010A(1992-95) A/T Control Unit, Theft Warning Control Unit, Auto A/C Control Amp, Key Hole Illumination, Footlights, Audio, HICAS Control Unit, Clock, Air Bag Control Unit

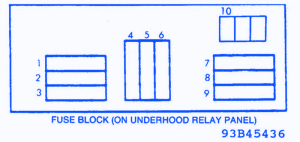

Datsun Camioneta 1998 Under hood Fuse Panel/Board – Fuse Symbol Map
