Daewoo Nubira 2002 Engine Fuse Box/Block Circuit Breaker Diagram
| FUSE/RELAY MAP | AMPS |
|---|---|
| HORN | 10A |
| FRT FOG RELAY | |
| FOG | 15A |
| HORN RELAY | |
| A/C COMP RELAY | |
| A/C | 10A |
| HEAD LAMP | 25A |
| DEAD LAMP RELAY | |
| ELEC FAN LO RELAY | |
| ELEC FAN HI RELAY | |
| IGNITION-2 RELAY | |
| DOOR LOCK | 15A |
| ANTENNA | 15A |
| HL HI LH | 10A |
| HL LO LH | 10A |
| ELEC. MIR | 10A |
| STOP | 20A |
| POWER SEAT | 20A |
| HL HI RH | 10A |
| HL LO RH | 10A |
| MIR. HEAT | 10A |
| FUEL PUMP | 15A |
| IL RH | 10A |
| IL LH | 10A |
| ECM | 15A |
| DEFOG | 30A |
| DIS | 20A |
| INJECTOR | 15A |
| FUEL PUMP RELAY | |
| TAIL LAMP RELAY | |
| IGNITION-1 RELAY | |
| HAZARD | 15A |
| BATT MAIN | 30A |
| BLOWER MOTOR | 30A |
| COOLING FAN LO SPEED | 20A |
| ABS | 60A |
| IGNITION-2 | 30A |
| IGNITION-1 | 30A |
| POWER WINDOW | 20A |
| ELEC FAN HI | 20A |

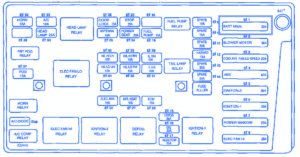

Daewoo Nubira 2002 Engine Fuse Panel/Board – Fuse Symbol Map
