Daewoo Nexia 2012 Passenger Fuse Box/Block Circuit Breaker Diagram
| Power Supply | Fuse No. | Rating | Fuse Map |
|---|---|---|---|
| 30A BAT (+) | F1 | 10A | Trunk Lamp, Room Lamp |
| F2 | 10A | Head Lamp S/W, DLC, Digital Clock, Door Opening Warning Lamp, Key Reminder S/W | |
| F3 | 15A | Hazard Lamp | |
| F4 | 15A | Central Door Locking System, Anti-Theft | |
| F5 | 10A | PCM | |
| F6 | 10A | Audio | |
| F7 | 15A | Stop Lamp | |
| DIODE | D8 | - | Door Contact Switch Driver |
| 15C ACC | F9 | 10A | Audio, Key Interlock |
| F10 | 15A | Cigar Lighter | |
| 15 IGN 1 ON | F11 | 10A | I/p, Digital Clock, Seat Belt Warning Lamp, DRL |
| F12 | 10A | Reverse(Back-Up) Lamp, Anti-Theft | |
| F13 | 15A | Air Bag | |
| F14 | 15A | Alternator, Injector, VSS(M/T), Shifting Solenoid(A/T), Carbon Canister Purge Solenoid LEGR, Cam Sensor, O2 Sensor, PCM | |
| F15 | 15A | Ignition Coil (EL System) | |
| F16 | 15A | Turn Signal, Electric Outside Rear View Mirror | |
| F17 | 15A | PCM, VGIS(DOHC) | |
| 15A IGN 2 ON | F18 | 20A | Wiper, Stop Lamp |
| F19 | 10A | EBCM, A/C Compressor, Cooling Fan Relay, Radiator Cooling Fan Relay A,B, Power Window Relay, Rear window Defroster Relay Sun Roof | |
| F20 | 20A | Blower Motor |

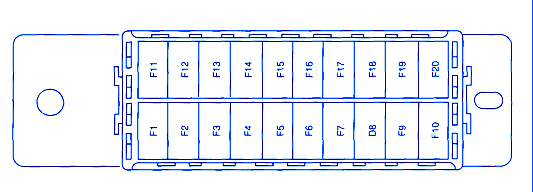

Daewoo Nexia 2012 Passenger Fuse Panel/Board – Fuse Symbol Map
