FUSEAMPERE RATING (A)FUNCTIONS
110APre-Heat Unit (diesel)- Brake and Clutch Switches- Reversing Lights
215AFuel Pump
310AABS Control Unit
410AEngine Control Unit
5-Not Used
615Afront Fog Lamps
720AHeadlamp Wash Pump
820AFan Assembly Relay - Engine Control Unit
915ALeftt-Hand Dipped Beam
1015ARight-Hand Dipped Beam
1110ALeft-Hand Main Beam
1210ARight-Hand Main Beam
1315AHorn
1410AFront and Rear Windscreen Wash Pumps
1530AOxygen Sensor - Air Flow Sensor
1630AAir Pump Relay
1730AFront Windscreen Wiper
1840AAir Conditioning Fan

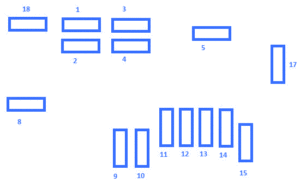

Citroen Guatemala 2005 Compartment Fuse Panel/Board – Fuse Symbol Map
