Chrysler Prowler 2005 Simple Fuse Box/Block Circuit Breaker Diagram
| CAVITY | AMPS | COLOR | ITEMS FUSED |
|---|---|---|---|
| 1 | 5A | TN | Heated Mirrors |
| 2 | 10A | RD | Time Delay Relay, Radio Electronics, Cluster, Entry, Mini Trip Computer, Glove Box, Trunk, Vanity mirror, Damp, Map, Ignition Switch, Door Courtesy, Reading Underhood & Underpanel Courtesy Lamps |
| 3 | 10A | RD | Right Headlamp, Fog Lamps |
| 4 | 10A | RD | Left Headlamp |
| 5 | 4A | PK | Illumination Lamps for A/C and Heater Control, ASH Receiver, Cluster, Radio, Console Gear Selector, Cigar Lighter, Console Glove Box & Mini Trip Computer, Heater Rear Window |
| 6 | 20A | YL | Name Brand Speaker Amplifier, Horn Relay |
| 7 | 2A | WT | Vehicle Speed Control |
| 8 | 5A | TN | Fuel Voltage Oil and Temperature Gauges, Chimes, Warning Lamp Module, Seat Belt Warning & Brake Warning Lamps, Mechanical Cluster Printed Circuit Board, Pasive Seat Belt |
| 9 | 30A | LG | A/C or Heater Blower Motor |
| 10 | 30A | C/BRKR | Power Windows |
| 11 | 10A | RD | Air Bag, Back-up Lamps, Heated Rear Window, Overheat Console, Transmision Control |
| 12 | 20A | YL | Hazard Flasher |
| 13 | 30A | C/BRKR | Power seat and Door Lock Motors |
| 14 | 20A | YL | Headlamp Switch |
| 15 | 20A | YL | CHME, Fog Lamps, Door Locks, Air Bag Module |
| 16 | 20A | YL | Stop Lamps, Turn Signals |

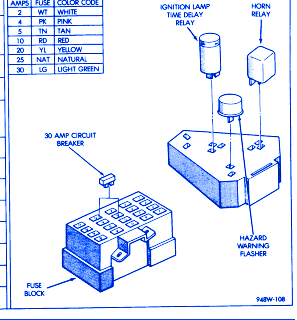

Chrysler Prowler 2005 Simple Fuse Panel/Board – Fuse Symbol Map
