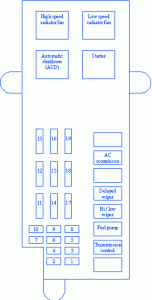

Chrysler Cirrus Mini 2005 Fuse Box/Block Circuit Breaker Diagram
| SYMBOL | AMPS | DESCRIPTION |
|---|---|---|
| 1 | 10A | Downstream Heated O2 Sensor |
| 2 | 20A | Anti-Lock Brake Controller |
| 3 | 20A | Transmission Control Relay & Module |
| 4 | 20A | Junction Block, Fuse 5/Brake Light Sw |
| 5 | 20A | Automatic Shutdown Relay/PCM |
| 6 | 20A | Combination Flasher in Multifunction Sw |
| 7 | 10A | Ignition Switch |
| 8 | 20A | Starter Relay/Fuel Pump Relay |
| 9 | 10A | 2Radiator Fan Relays/ AC Compressor/ Instrument Cluster/ Travel Computer |
| 10 | 10A | PCM/Antilock Brake Controller |
| 11 | - | - |
| 12 | 40A | Rear Window Defogger Relay |
| 13 | 40A | Antilock Brake Controller |
| 14 | 40A | Junction Block, Fuse7 & 8 |
| 15 | 40A | Headlamp Switch/ Headlamp Delay Relay |
| 16 | 40A | Ignition Switch |
| 17 | - | - |
| 18 | 40A | Intermittent Wiper Relay |
| 19 | 40A | 2Radiator Fan Relays/ AC Compressor |
Chrysler Cirrus Mini 2005 Fuse Panel/Board – Fuse Symbol Map
