Chevy ZR2 S-10 1996 Main Fuse Box/Block Circuit Breaker Diagram
| Fuse No. | Fuse/Circuit Breaker | Rating | Description |
|---|---|---|---|
| 1 | - | - | Not Used |
| 2 | CIGAR LTR | 15A | Cigar Lighter and Data Link Connector (DLC) |
| 3 | CRUISE | 10A | Body Control Module (BCM), Cruise Control Module (CCM), MultiFunction Switch (Cruise Control Switch), and Seat Lumbar Switch Driver/Front Passenger |
| 4 | GAUGES | 10A | Body Control Module (BCM), and Instrument Panel Cluster (IPC) |
| 5 | PARK LP | 10A | Body Control Module (BCM), Outside Rear View Mirror Switch, Door Lock and side Window Switch Driver front Passenger, Side Window Lockout Switch, and Rear Seat Audio Control (Envoy Only), IP Ashtray Lamp (Except Envoy) |
| 6 | STR WHL ILLUM | 2A | Redundant Steering Wheel Controls (Utility Only) |
| 7 | HDLP SW | 10A | Headlamp Switch |

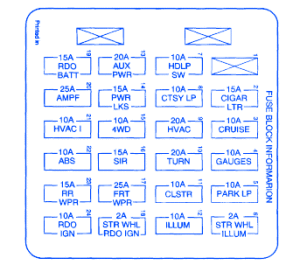

Chevy ZR2 S-10 1996 Main Fuse Panel/Board – Fuse Symbol Map
