SYMBOL | DESCRIPTION |
---|---|
P/W | Power Windows |
DOM | Dome Light |
TAIL | License Plate Light, Clearance/Marker Lights, Instrument Panel Illumination |
HAZ | Hazard Lights |
IG | O2 Sensor Heater, Cruise Control, Ignition Coil, Meter, G Sensor |
CIG | Cigar/Cigarette Lighter, Radio, Power Mirror |
D/L | Door Locks |
STP | Brake Light, Horn, Centre High-Mounted Stop Lamp |
FOG | Not Used |
DEF | Rear Window Defogger, DRL |
S/H | Not Used |
TRN | Turn Signal, Back-Up Light |
WIP | Windshield Wiper/Washer, Rear Window Wiper/Washer |

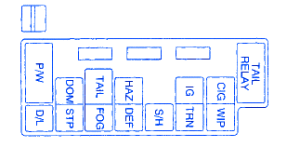

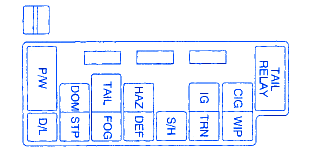

Chevy Tracker Blows 2000 Under The Hood Fuse Panel/Board – Fuse Symbol Map
