Chevy Tracker 2001 Underhood Fuse Box/Block Circuit Breaker Diagram
| SYMBOL | DESCRIPTION |
|---|---|
| 1 | Accessory Power Outlet |
| 2 | Electroic Fuel Injection System |
| 3 | Right Headlamp |
| 4 | Left Headlamp, High-Beam Indicator |
| 5 | Heater |
| 6 | Hazard Lamps, Rear Combination Lamps, Dome Light, Horn |
| 7 | Cigar ighter, Radio, I.G.Coil, Meter, Wiper, Washer, Rear Defrost, Turn Signals, Back-Up Lamps |
| 8 | Anti-Lock Brake System |
| 9 | All Electrical Loads |
| 10 | Air Conditioning |

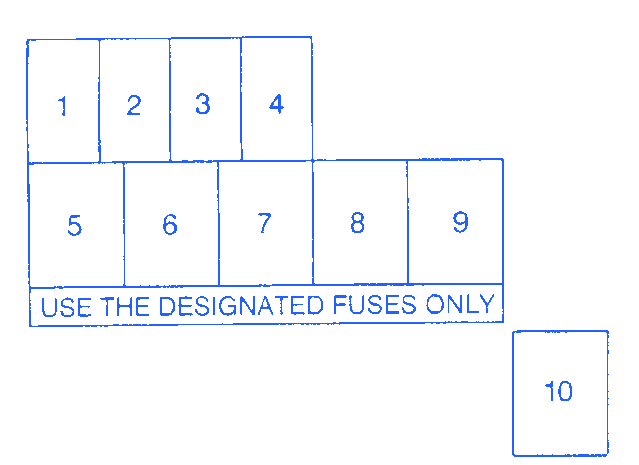

Chevy Tracker 2001 Underhood Fuse Panel/Board – Fuse Symbol Map
