Chevy Suburban 2002 Instrument Panel Electrical Circuit Wiring Diagram
| Symbol | Description |
|---|---|
| 1 | Fuse Block Connector |
| 2 | Body Control Module (BCM) Connector |
| 3 | Splice Pack 205 (SP205) |
| 4 | Fuse Block |
| 5 | Data Link Connector (DLC) |
| 6 | LH IP Courtesy Lamp |
| 7 | LH IP Courtesy Lamp Socket |
| 8 | LH IP Support to Dash |
| 9 | Left Windshield Pilar Trim Panel |

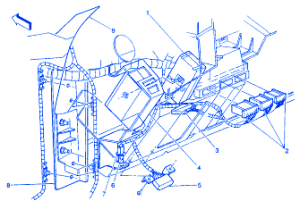

Chevy Suburban 2002 Instrument Panel Electrical Circuit Symbol Map
