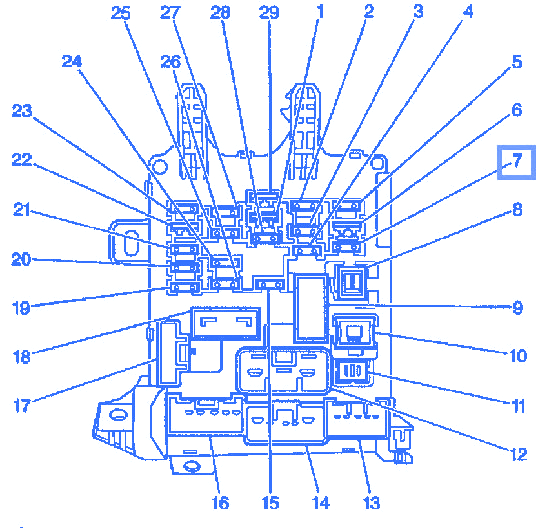

Chevy Prizm 1998 Engine Electrical Circuit Wiring Diagram
| SYMBOL | DESCRIPTION | AMPS |
|---|---|---|
| 1 | Not Used | - |
| 2 | ST Fuse | 5A |
| 3 | D/L Fuse | 30A |
| 4 | Fog Fuse | 15A |
| 5 | S-HTR Fuse | 15A |
| 6 | Not Used | - |
| 7 | CIG Fuse | 15A |
| 8 | DEF Fuse | 40A |
| 9 | Dome Noise Filter | - |
| 10 | POWER Fuse | 30A |
| 11 | Short Pin | - |
| 12 | C2 | - |
| 13 | C5 | - |
| 14 | C4 | - |
| 15 | ECU-B Fuse | 7.5A |
| 16 | C3 | - |
| 17 | C1 | - |
| 18 | Not Used | - |
| 19 | DEF-I/P Fuse | 10A |
| 20 | WIP Fuse | 20A |
| 21 | GAUGE Fuse | 10A |
| 22 | Not Used | - |
| 23 | TURN Fuse | 7.5A |
| 24 | STOP Fuse | 15A |
| 25 | IGN Fuse | 7.5A |
| 26 | TAIL Fuse | 15A |
| 27 | ECU-IG Fuse | 10A |
| 28 | OBD Fuse | 7.5A |
| 29 | Not Used | - |
Chevy Prizm 1998 Engine Electrical Circuit Symbol Map
