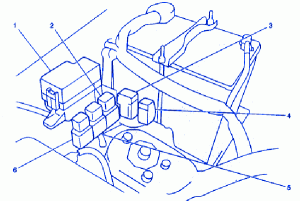

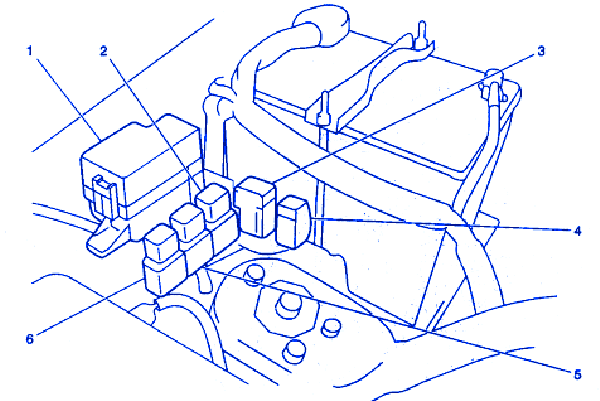

Chevrolet Tracker LXT 2010 Engine Fuse Box/Block Circuit Breaker Diagram
| Symbol | Description |
|---|---|
| 1 | Fuse Block |
| 2 | A/C Compressor Relay |
| 3 | A/C Condenser Fan Relay |
| 4 | A/C Fuse |
| 5 | Horn Relay |
| 6 | Shift Lock Control Relay |
Chevrolet Tracker LXT 2010 Engine Fuse Panel/Board – Fuse Symbol Map
