Chevrolet Tracker L.X.T 2007 Fuse Box/Block Circuit Breaker Diagram

Chevrolet Tracker L.X.T 2007 Fuse Box/Block Circuit Breaker Diagram



SymbolDescription
1Fuse Block
2A/C Compressor Relay
3A/C Condenser Fan Relay
4A/C Fuse
5Horn Relay
6Shift Lock Control Relay

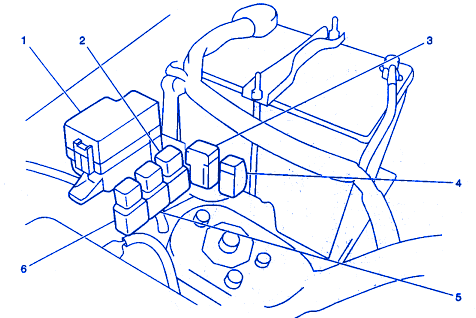

Chevrolet Tracker L.X.T 2007 Fuse Panel/Board – Fuse Symbol Map
