Symbol | Description |
---|---|
1 | Ground 103 (G103) |
1 | Ground 103 (G103) |
2 | Engine Hamess H02S |
3 | HO2 Sensor Connector Bank 1, Sensor 1 |
4 | Fuel Line Bracket |
5 | Ground 104 (G104) |
5 | Ground 104 (G104) |
6 | Oil Pressure Sensor Connector |
6 | Oil Pressure Sensor |
7 | Engine Ground Strap (G107) |
8 | TP 1 Battery Cable (G106) |

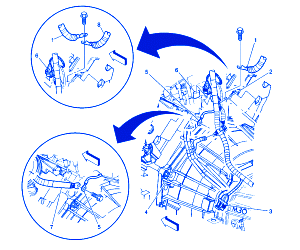

Chevrolet Silverado 5.3 2004 Engine Component Electrical Circuit Symbol Map
