Chevrolet S10 2200 2008 Main Fuse Box/Block Circuit Breaker Diagram
| Fuse/ Circuit Breaker | Rating | Description |
|---|---|---|
| Maxi Fuses | ||
| INT BATT | 50A | HDLP SW, AUX PWR, RDO BATT, CIGAR LTR, CTSY LP, and PWR LKS Fuses, and AMPF Fuse (W/Premium Audio) |
| ABS | 60A | Electronic Brake Control Module (EBCM) |
| IGN B | 50A | Ignition Switch |
| RAP | 50A | Retained Accessory Power (RAP) Relay |
| IGN A | 40A | Starter Relay and Ignition Switch |
| STUD #2 | 30A | Not Used |
| Mini Fuses | ||
| TRL TRN | 10A | Not Used |
| LT TRN | 10A | Park and Turn Signal Lamp, LH Rear |
| BTSI | 10A | TCC/Stop Lamp Switch, annd Transfer Case Shift Control Module(w/NP1) |
| PARK LP | 20A | Park Lamp Relay, Headlamp Grounding Relay, and Headlamp Switch |
| HVAC | 30A | Blower Motor Relay |
| HAZ LP | 20A | Multifunction Switch (Hazard) |
| TRR TRN | 10A | Not Used |
| RT TRN | 10A | Park and Turn Signal Lamp, RH Rear |

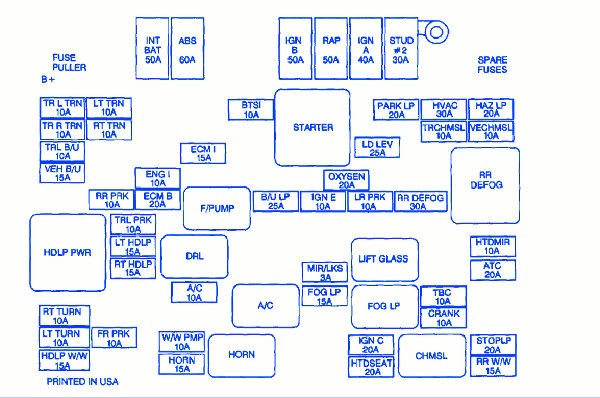

Chevrolet S10 2200 2008 Main Fuse Panel/Board – Fuse Symbol Map
